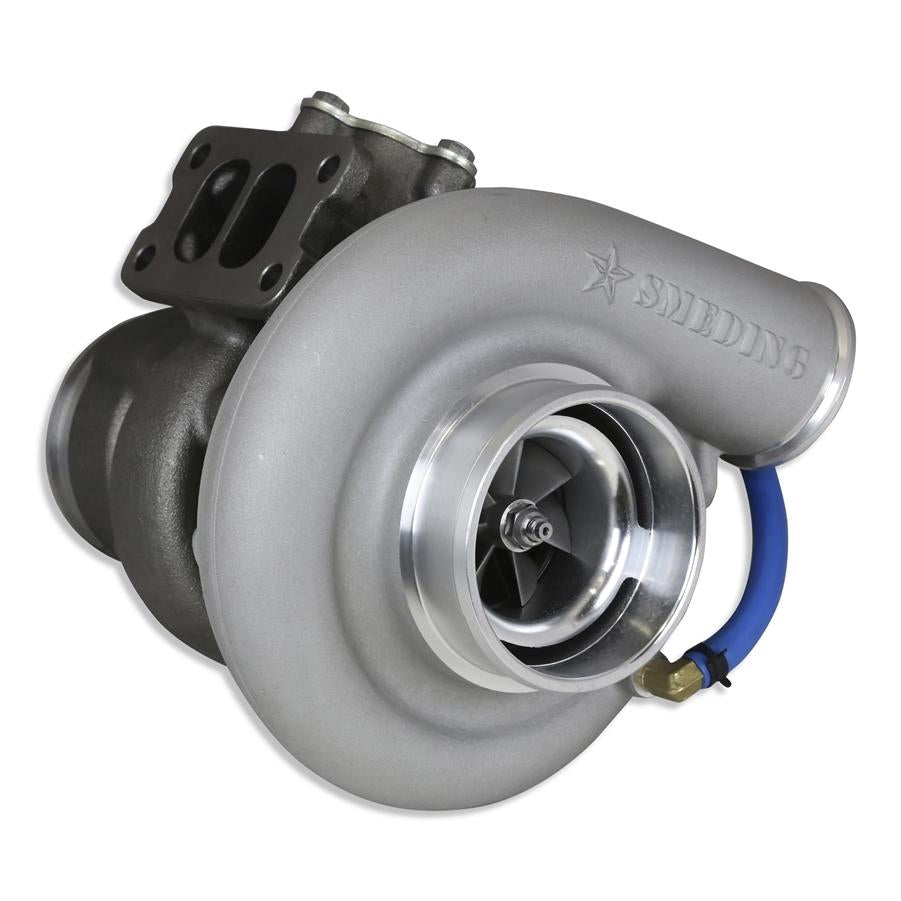

MDC Diesel S300 66/73/14CM 94-02 2nd Gen Cummins 5.9l Drop In Turbo

S366/73/14CM or 12CM Direct Bolt Turbocharger for 94-02 5.9l Cummins.


MDC Diesel S300 66mm Cummins drop in replacement turbo for the 94 to 02 5.9l Cummins. This S366/73 Cummins Direct Bolt in Turbo Is equipped with a large shaft and heavy duty bearings for superior durability and performance.

This turbo is rated for 700 horsepower, is a great all around turbo and tows excellent on 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 and 2002 12V AND 24V 5.9l Cummins Turbo diesels.

Wheel Dimensions:
Compressor: 66 mm with Extended Tip Technology.
Turbine: 73 mm exducer. Cast in Inconel 713 for high-temperature resistance.

Twin Scroll Divided T3 Gated Housing 12CM .70 A/R or14cm .80 A/R.
Waste Gate set to 40psi and is user adjustable.

This Cummins Direct Bolt in Turbo Is great for a large upgrade to the stock HX35 or HY35 turbo that comes factory on the 94-02 5.9l Cummins.

Specifications:

• S300 Frame, Large 8mm Shaft
• 66mm Compressor wheel Inducer
• 73mm Turbine Wheel
• Standard Brass 270 Degree Thrust OR Extreme Duty Steel 360* Thrust
• 12 or 14cm GATED Turbine Housing
• Direct fit for 1994-2002Cummins 5.9l Trucks

THIS TURBO IS EXCELLENT FOR UP TO 700HP.

THIS IS NOT A TOW FRIENDLY TURBO ON A 12 or 24V
250hp Injectors minimum recommended
